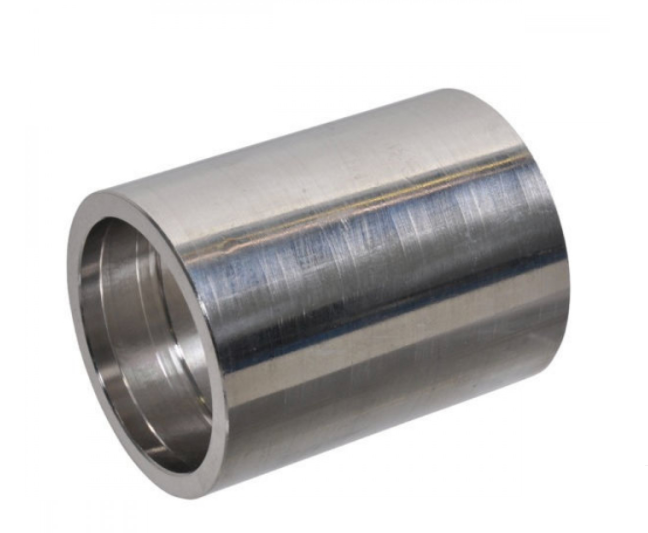

Stainless steel press sleeve for DN 1/2" suitable for 2SN hose

Stainless steel compression sleeve for DN 1/2" suitable for 2SN hose

• Suitable for the following hose types: R1AT, R2AT, 1SN, 2SN, 2SC, R16, 3TE

Technical specification:

• Dimension DN: 1/2"
• Dimension L: 32mm
• Dimension L1: 25.4mm
• Dimension ØA: 28mm
• Dimension C: 18.7mm
• Dimension ØD: 30mm
• Dimension ØE: 24mm
