SAE-B 48mm (Z=13) elastic coupling complete

€241.70
In stock

SAE-B 48mm (Z=13) elastic coupling complete

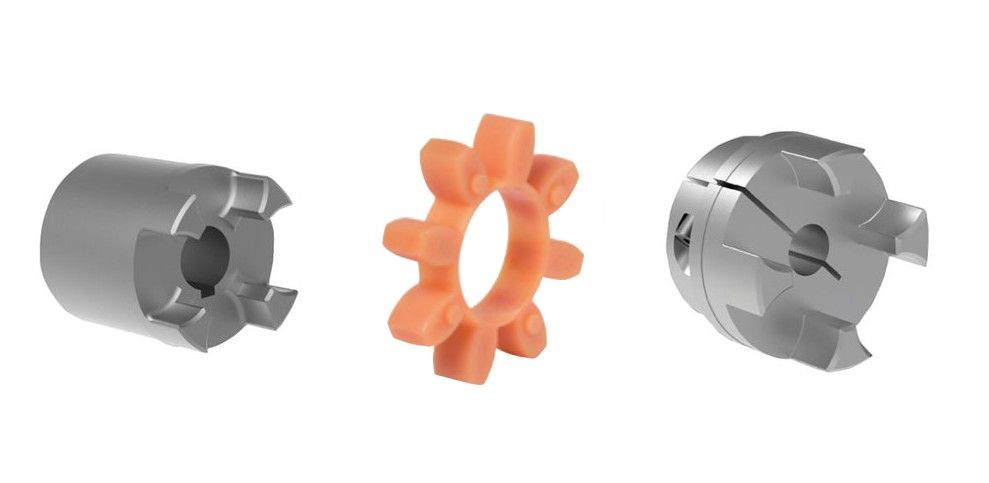

  • Complete set: including clutch half motor and plastic star
  • Material: steel and plastic
  • Suitable for: 18.5W and 22W electric motor with size 180, flange size (outer diameter) 350 and shaft diameter 48

Technical specifications part 1 (clamping hub type 2.3 with spline bore P567101 code PB-S Z=13)

  • Outside diameter: Ø95
  • Size: (rotex) 42
  • max. RPM: 8000
  • Weight: 2.25kg
  • Item number: 020425045519
  • Material: stem
  • Brand: KTR

Technical specifications clutch motor:

  • Diameter: Ø95
  • Size: (rotex) 42
  • Item number: 020423104800

Technical specifications plastic star:

  • Colour: orange
  • Tooth: 8
  • Diameter: Ø95
  • Item number: 020421000045
