SAE BB 42mm (Z=15) elastic coupling complete
€209.62
In stock
SAE BB 42mm (Z=15) elastic coupling complete

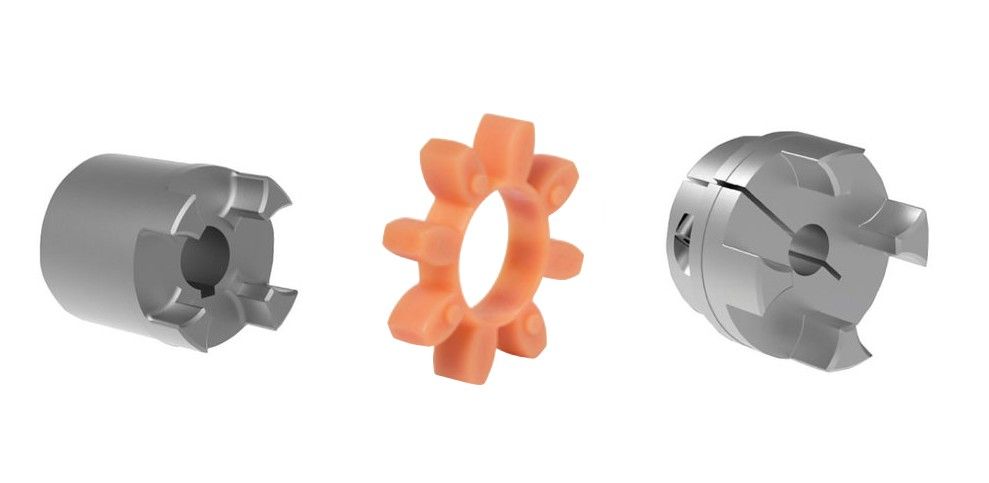

- Complete set: including coupling half motor and plastic star
- Material: steel and plastic
- Suitable for: 11W and 15W electric motor with size 160, flange size (outer diameter) 350 and shaft diameter 42
Technical specifications part 1 (clamping hub type 2.3 with spline bore P561201 code PB-BS Z=15)
- Outside diameter: Ø80
- Size: (rotex) 38
- max. RPM: 9500
- Weight: 1.3kg
- Item number: 020385045522
- Material: steel
- Brand: KTR
Technical specifications clutch motor:
- Diameter: Ø80
- Size: (rotex) 38
- Item number: 020383104200
Technical specifications plastic star:
- Color: orange
- Teeth: 8
- Diameter: Ø80
- Article number: 020381000045
