SAE BB 48mm (Z=15) elastic coupling complete
€241.70
In stock
SAE BB 48mm (Z=15) elastic coupling complete

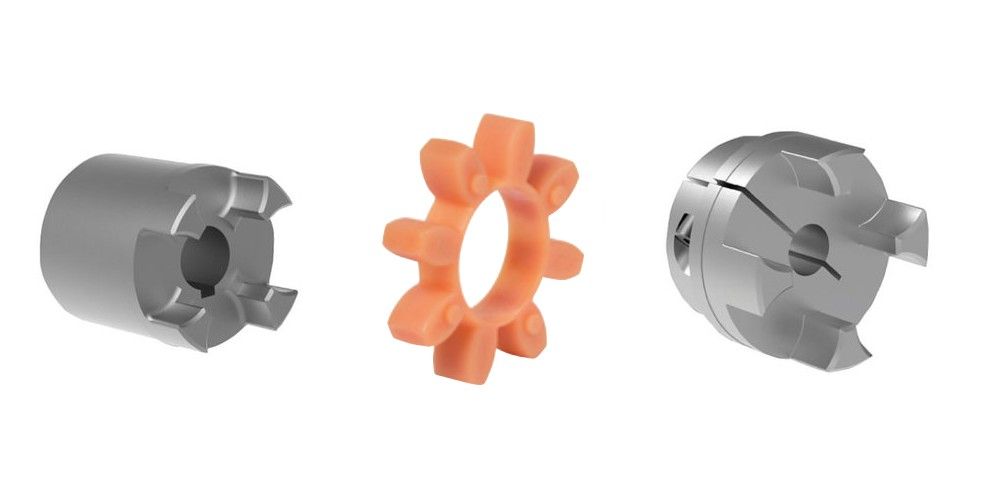

- Complete set: including coupling half motor and plastic star
- Material: steel and plastic
- Suitable for: 18.5W and 22W electric motor with size 180, flange size (outer diameter) 350 and shaft diameter 48
Technical specifications part 1 (clamping hub type 2.3 with spline bore P561201 code PB-BS Z=15)
- Outside diameter: Ø95
- Size: (rotex) 42
- max. RPM: 8000
- Weight: 2.2kg
- Item number: 020425045522
- Material: steel
- Brand: KTR
Technical specifications clutch motor:
- Diameter: Ø95
- Size: (rotex) 42
- Item number: 020423104800
Technical specifications plastic star:
- Color: orange
- Teeth: 8
- Diameter: Ø95
- Article number: 020421000045
