SAE-C 38mm elastic coupling complete
€139.93
In stock

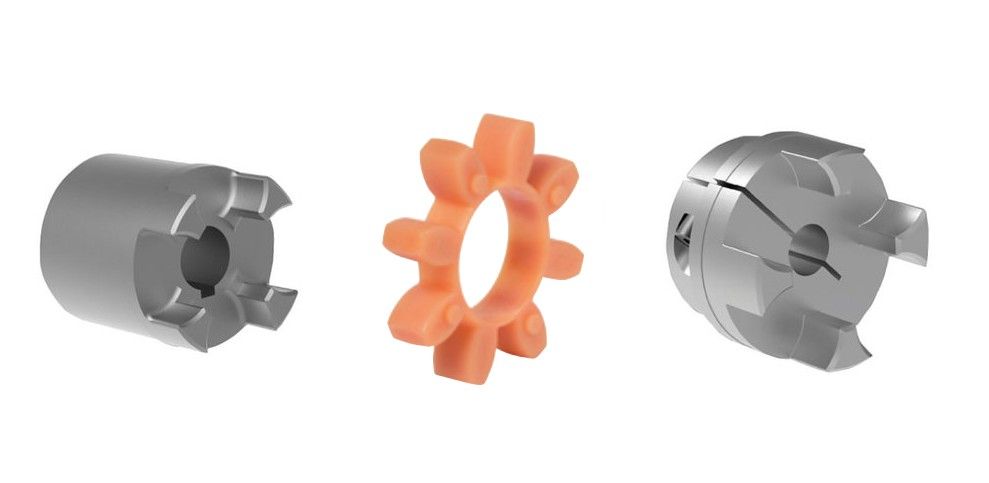

SAE-C 38mm (Z=14) elastic coupling complete
- Complete set: including clutch half motor and plastic star
- Material: steel and plastic
- Suitable for: 5.5kW and 7.5kW electric motor with frame size 132, flange size (outer diameter) 300 and shaft diameter 38
Technical specifications part 1 (clamping hub type 2.3 with spline bore P556201 code PC-S Z=14)
- Outside diameter: Ø65
- Size: (rotex) 28
- max. RPM: 11500
- Item number: 020285145527
- Material: stem
- Brand: KTR
Technical specifications clutch motor:
- Diameter: Ø65
- Size: (rotex) 28
- Item number: 020285103800
Technical specifications plastic star:
- Colour: orange
- Tooth: 8
- Diameter: Ø65
- Item number: 020281000045
