SAE-C 42mm elastic coupling complete
€273.11
In stock

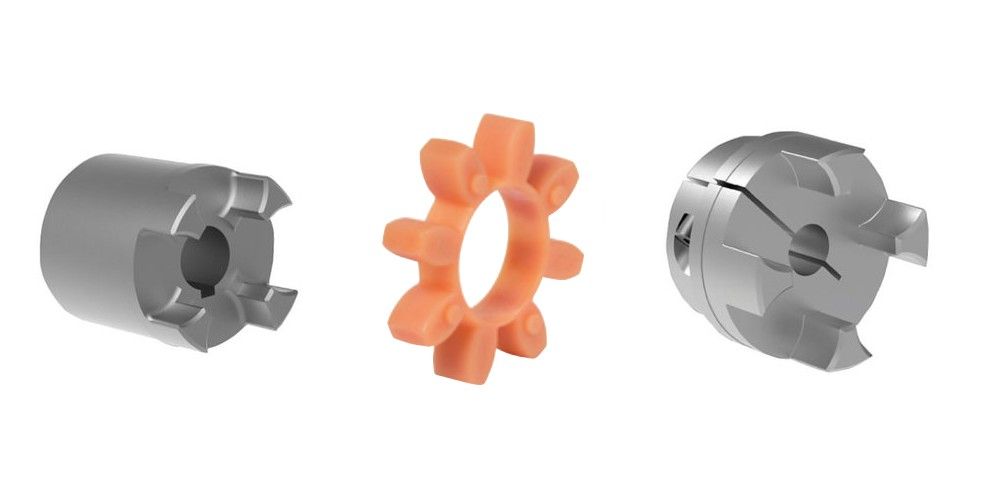

SAE-C 42mm (Z=14) elastic coupling complete
- Complete set: including clutch half motor and plastic star
- Material: steel and plastic
- Suitable for: 11kW and 15kW electric motor with frame size 160, flange size (outer diameter) 350 and shaft diameter 42
Technical specifications part 1 (clamping hub type 2.3 with spline bore P556201 code PC-S Z=14)
- Outside diameter: Ø80
- Size: (rotex) 38
- max. RPM: 9000
- Item number: 020385045527
- Material: stem
- Brand: KTR
Technical specifications clutch motor:
- Diameter: Ø80
- Size: (rotex) 38
- Item number: 020383104200
Technical specifications plastic star:
- Colour: orange
- Tooth: 8
- Diameter: Ø80
- Item number: 020381000045
