SAE-C 48mm elastic coupling complete
€273.80
In stock

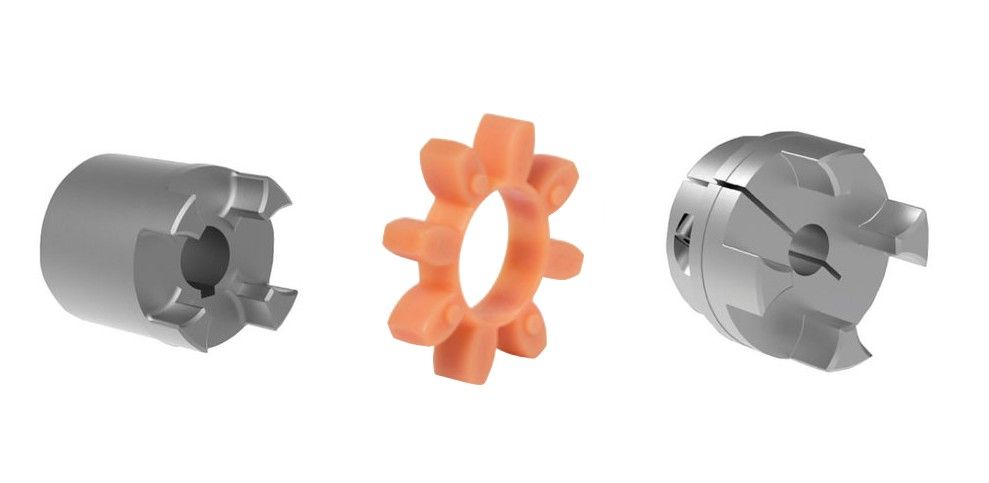

SAE-C 48mm (Z=14) elastic coupling complete
- Complete set: including clutch half motor and plastic star
- Material: steel and plastic
- Suitable for: 18.5kW and 22kW electric motor with size 180, flange size (outer diameter) 350 and shaft diameter 48
Technical specifications part 1 (clamping hub type 2.3 with spline bore P556201 code PC-S Z=14)
- Outside diameter: Ø95
- Size: (rotex) 42
- max. RPM: 8000
- Item number: 020425045527
- Material: stem
- Brand: KTR
Technical specifications clutch motor:
- Diameter: Ø95
- Size: (rotex) 42
- Item number: 020423104800
Technical specifications plastic star:
- Colour: orange
- Tooth: 8
- Diameter: Ø95
- Item number: 020421000045
