SAE-C 55mm elastic coupling complete

€295.20
In stock

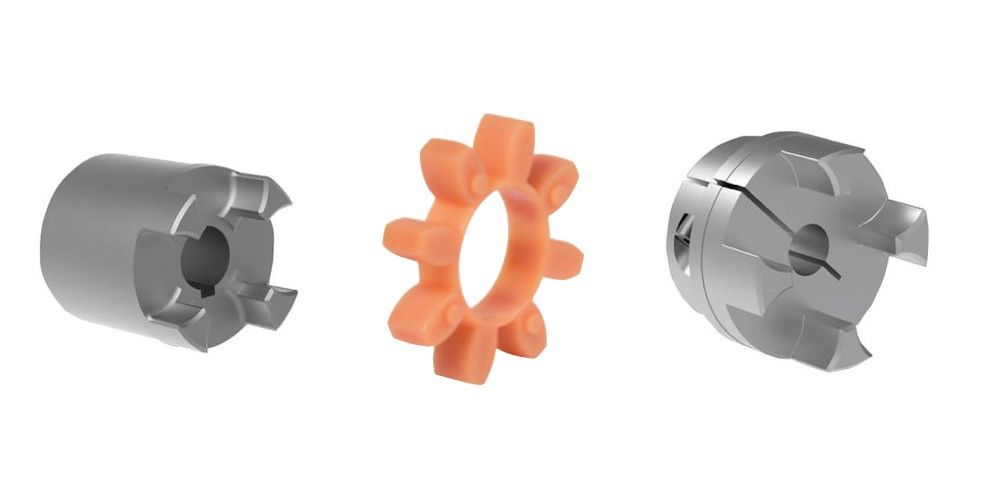

SAE-C 55mm (Z=14) elastic coupling complete

  • Complete set: including clutch half motor and plastic star
  • Material: steel and plastic
  • Suitable for: 30kW electric motor with size 200, flange size (outer diameter) 400 and shaft diameter 55

Technical specifications part 1 (clamping hub type 2.3 with spline bore P556201 code PC-S Z=14)

  • Outside diameter: Ø95
  • Size: (rotex) 42
  • max. RPM: 8000
  • Item number: 020425045527
  • Material: stem
  • Brand: KTR

Technical specifications clutch motor:

  • Diameter: Ø95
  • Size: (rotex) 42
  • Item number: 020423115500

Technical specifications plastic star:

  • Colour: orange
  • Tooth: 8
  • Diameter: Ø95
  • Item number: 020421000045
