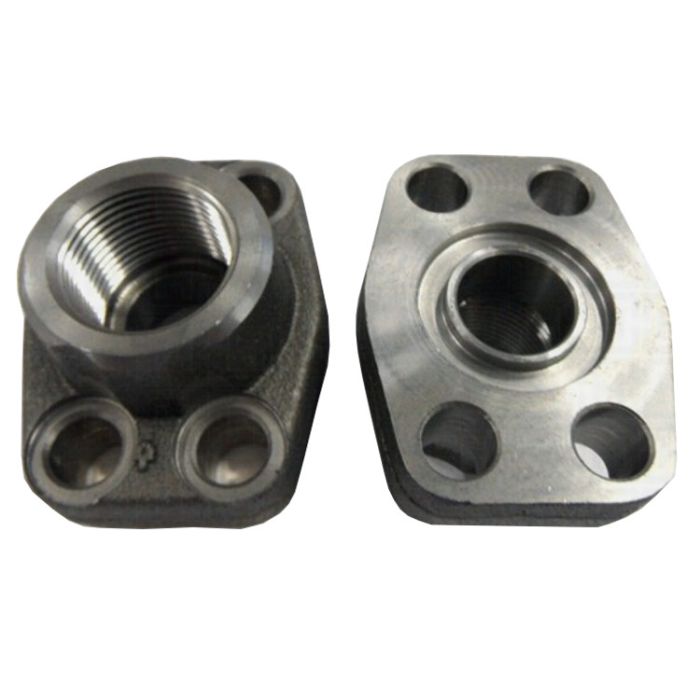

SAE threaded flange (female) 1" 1/4 BSP, 1" 1/4 inch, 3000 PSI
€15.81
In stock
SAE threaded flange (female) 1" 1/4 BSP, 1" 1/4 inch, 3000 PSI
Technical specifications:
- Series: 3000 PSI
- R1: 1" 1/4 BSP
- Size: 1" 1/4
- Dimensions ØW: 32 mm
- Dimension ØL: 11.5 mm
- Dimension C: 58.72mm
- Dimension E: 30.18 mm
- Dimension G: 40mm
- Dimension H: 21 mm
- Dimension M: M10 x 40
Other technical specifications:
- O-ring: 1" 1/4
- Screw: TB10 x 40
- Unit: per piece
