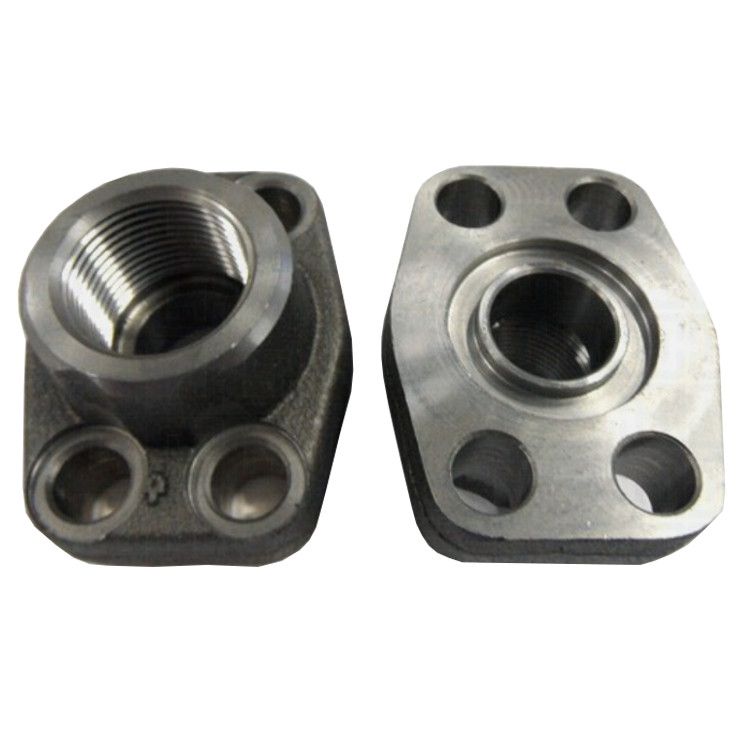

SAE threaded flange (female) 1" 1/4 BSP, 1" 1/4 inch, 6000 PSI

€30.42
In stock

SAE threaded flange (female) 1" 1/4 BSP, 1" 1/4 inch, 6000 PSI

Technical specifications:

  • Series: 6000 PSI
  • R1: 1" 1/4 BSP
  • Size: 1" 1/4"
  • Dimensions ØW: 32 mm
  • Dimension ØL: 15 mm
  • Dimension C: 66.68mm
  • Dimension E: 31.75 mm
  • Dimension G: 45mm
  • Dimension H: 27 mm
  • Dimension M: M14 x 45

Other technical specifications:

  • O-ring: 1" 1/4
  • Screw: TB14 x 45
  • Unit: per piece
*Excluding screws and o-rings
