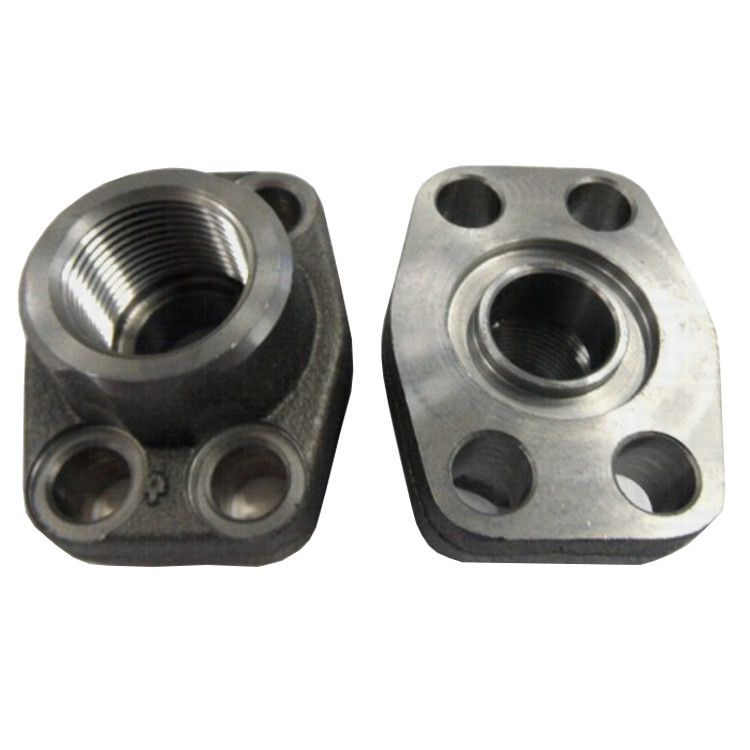

SAE threaded flange (female) 2" 1/2 BSP, 2" 1/2 inch, 3000 PSI

€40.80
In stock

SAE threaded flange (female) 2"1/2 BSP, 2"1/2 inch, 3000 PSI

Technical specifications:

  • Series: 3000 PSI
  • R1: 2" 1/2 BSP
  • Size: 2"1/2 inches
  • Dimensions ØW: 63 mm
  • Dimension ØL: 13.5 mm
  • Dimension C: 88.90 mm
  • Dimension E: 50.80 mm
  • Dimension G: 50 mm
  • Dimension H: 25 mm
  • Dimension M: M12 x 45

Other technical specifications:

  • O-ring: 2" 1/2
  • Screw: TB12 x 45
  • Unit: per piece
*Excluding screws and o-rings
