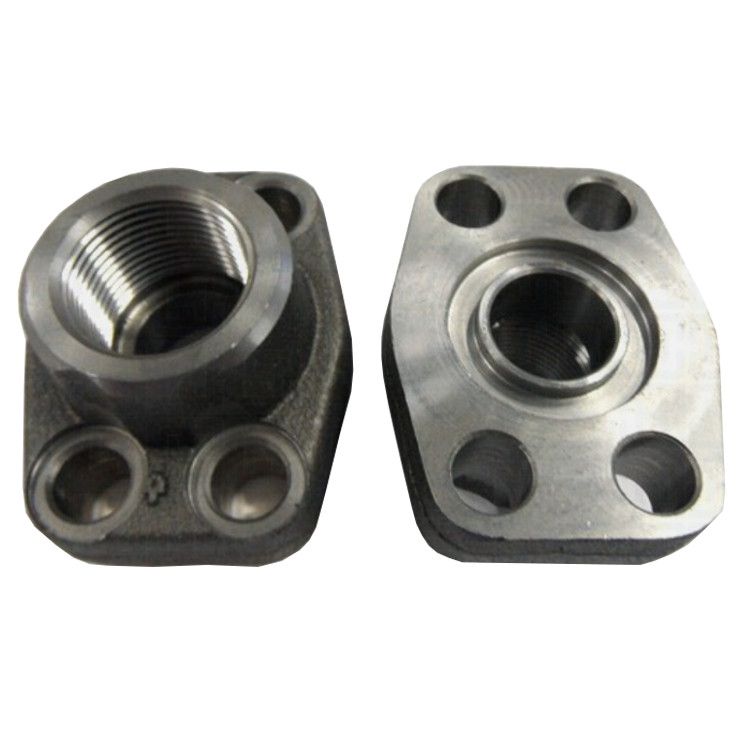

SAE threaded flange (female) 3/4" BSP, 3/4 inch, 3000 PSI
€10.95
In stock
SAE threaded flange (female) 3/4" BSP, 3/4 inch, 3000 PSI
Technical specifications:
- Series: 3000 PSI
- R1: 3/4" BSP
- Size: 3/4"
- Dimensions ØW: 19 mm
- Dimension ØL: 11 mm
- Dimension C: 47.63mm
- Dimension E: 22.23mm
- Dimension G: 36mm
- Dimension H: 18 mm
- Dimension M: M10 x 35
Other technical specifications:
- O-ring: 3/4"
- Screw: TB10 x 35
- Unit: per piece
