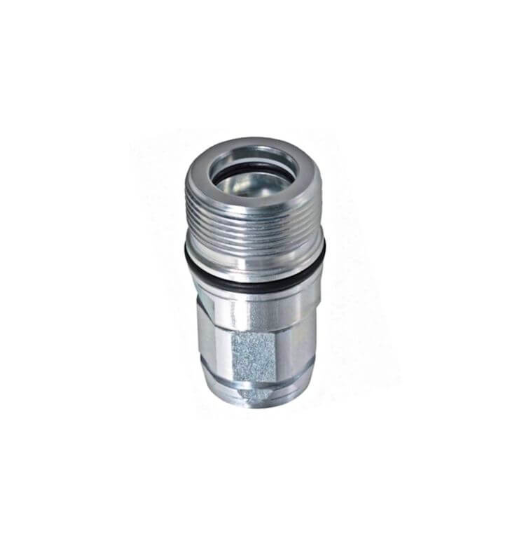

Screw Flat face quick release coupling 1"1/2 BSP female, BG-size 7 high pressure

Screw Flat face quick release coupling 1"1/2 BSP female, BG-size 7 high pressure

• Material: steel / Zn – Fe (Cr III) / Zn - Ni
• Seals: NBR
• Work temperature: -25 ºC to +100 ºC
• ISO: 7241

Technical specifications:

• Size R1: 1"1/2 BSP
• Operating pressure: 300 bar
• ISO-size: 40
• BG-size: 7
• type of coupling: female
• Flow rate: 288 l/min
• Max. flow: 480 l/min
• Size L: 176 mm
• Size L2: 90 mm
• Size HEX 2: 55 mm
• Size HEX 3: 85 mm
• Size ØE: 93 mm
