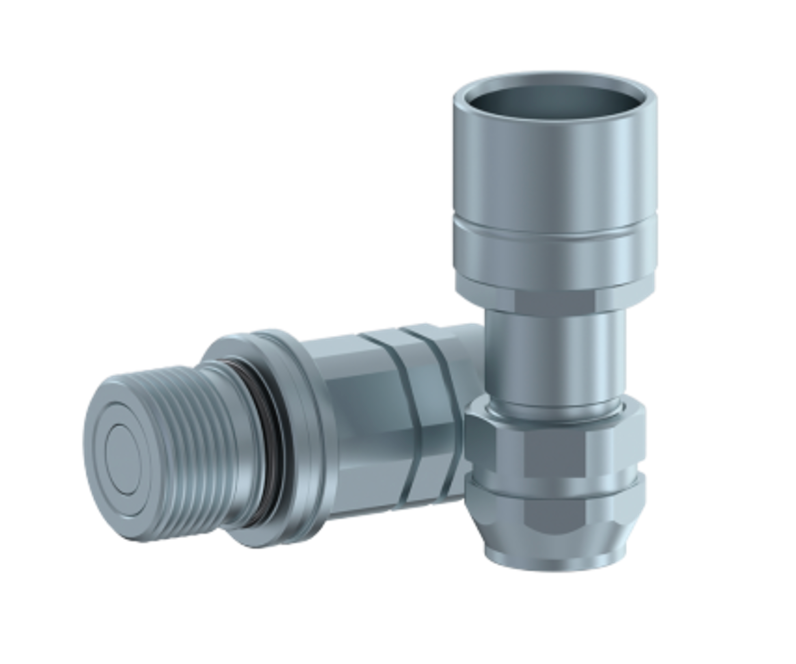

Screw Flat face quick release coupling 1"1/2 BSP male, BG-size 7
€599.30
In stock
Screw Flat face quick release coupling 1"1/2 BSP male, BG-size 7
- Reinforced Flat face quick release couplings that is able to resist more pressure
- Work temperature: -25 ºC to +100 ºC
- Operating pressure: 300 - 450 bar
- Maximum residual pressure: 300 bar
- Seals: NBR
- Material: steel
Technical specifications:
- Size R1: 1"1/2 BSP
- Operating pressure: 300 bar
- ISO-size: 40
- BG-size: 7
- type of coupling: male
- Flow rate: 379 l/min
- Size L: 244 mm
- Size L2: 153,7 mm
- Size HEX 4: 75 mm
- Size ØE: 57 mm
