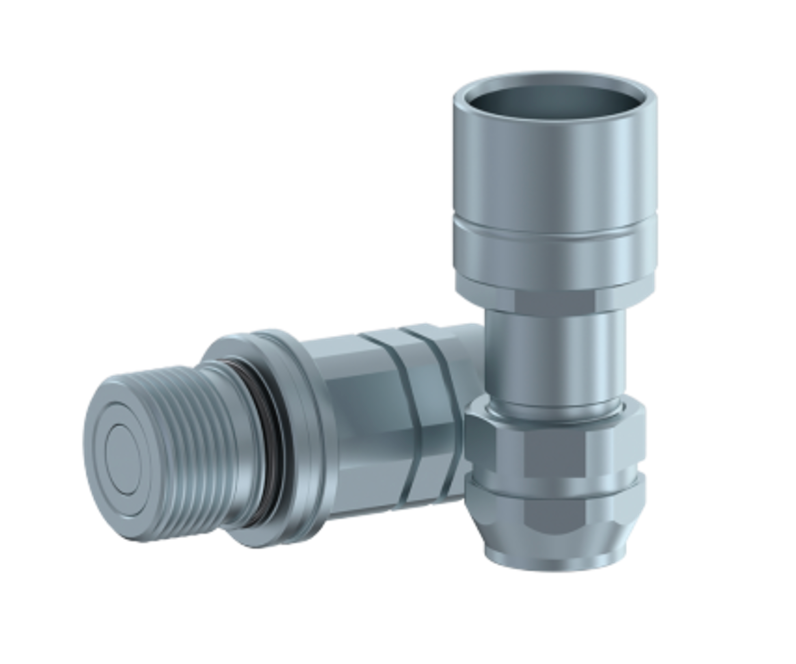

Screw Flat face quick release coupling 1"1/4 BSP male, BG-size 5
€297.49
In stock
Screw Flat face quick release coupling 1"1/4 BSP male, BG-size 5
- Reinforced Flat face quick release couplings that is able to resist more pressure
- Work temperature: -25 ºC to +100 ºC
- Operating pressure: 300 - 450 bar
- Maximum residual pressure: 300 bar
- Seals: NBR
- Material: steel
Technical specifications:
- Size R1: 1"1/4 BSP
- Operating pressure: 350 bar
- ISO-size: 25
- BG-size: 5
- type of coupling: male
- Flow rate: 189 l/min
- Size L: 206,5 mm
- Size L2: 120 mm
- Size HEX 4: 55 mm
- Size ØE: 60 mm
