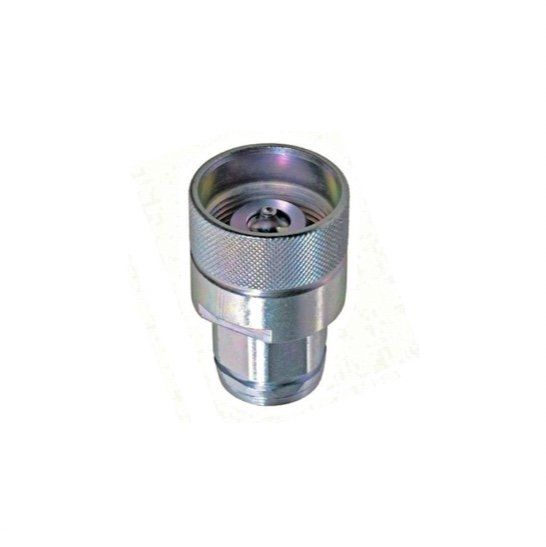

Screw Flat face quick release coupling 1"1/4 BSP male, BG-size 6 high pressure

Screw Flat face quick release coupling 1"1/4 BSP male, BG-size 6 high pressure

• Material: steel / Zn – Fe (Cr III) / Zn - Ni
• Seals: NBR
• Work temperature: -25 ºC to +100 ºC
• ISO: 7241

Technical specifications:

• Size R1: 1"1/4 BSP
• Operating pressure: 320 bar
• ISO-size: 31,5
• BG-size: 6
• type of coupling: male
• Flow rate: 288 l/min
• Max. flow: 480 l/min
• Size L: 171 mm
• Size L1: 116 mm
• Size HEX 1: 48 mm
