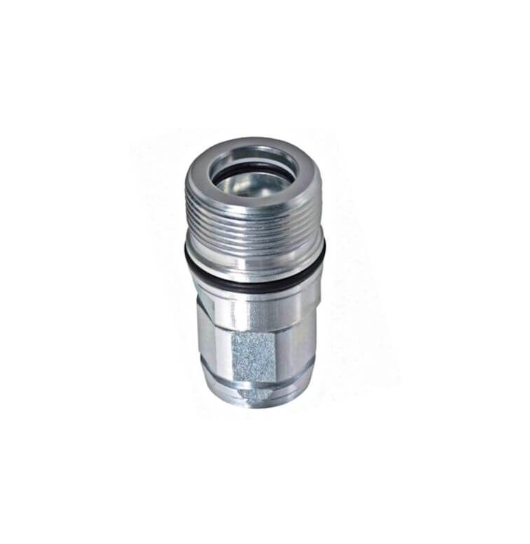

Screw Flat face quick release coupling 1/2" BSP female, BG-size 3 high pressure

Screw Flat face quick release coupling 1/2" BSP female, BG-size 3 high pressure

• Material: steel / Zn – Fe (Cr III) / Zn - Ni
• Seals: NBR
• Work temperature: -25 ºC to +100 ºC
• ISO: 7241

Technical specifications:

• Size R1: 1/2" BSP
• Operating pressure: 470 bar
• ISO-size: 12,5
• BG-size: 3
• type of coupling: female
• Flow rate: 45 l/min
• Max. flow: 90 l/min
• Size L: 135 mm
• Size L2: 70 mm
• Size HEX 2: 26 mm
• Size HEX 3: 50 mm
• Size ØE: 55 mm
