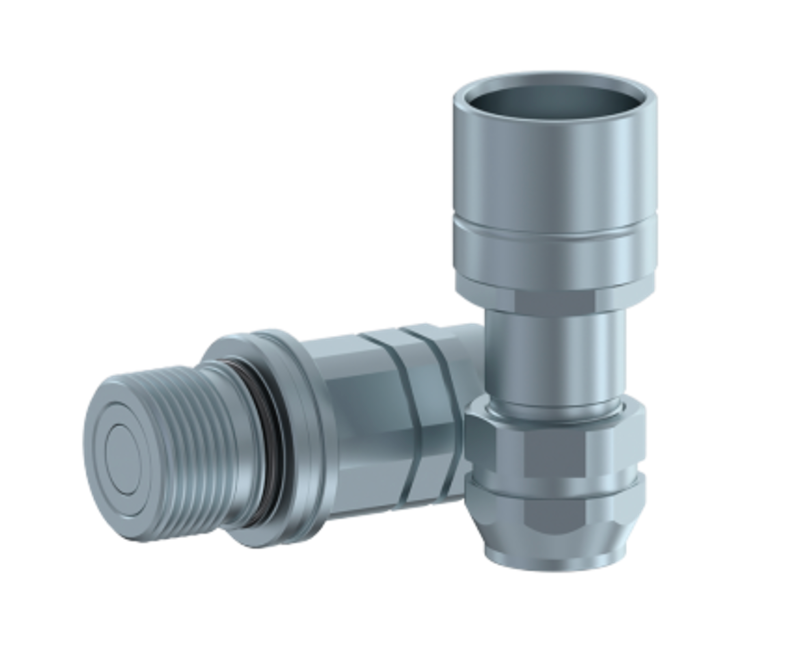

Screw Flat face quick release coupling 1/4" BSP male, BG-size 1

Screw Flat face quick release coupling 1/4" BSP male, BG-size 1

• Reinforced Flat face quick release couplings that is able to resist more pressure
• Work temperature: -25 ºC to +100 ºC
• Operating pressure: 300 - 450 bar
• Maximum residual pressure: 300 bar
• Seals: NBR
• Material: steel

Technical specifications:

• Size R1: 1/4" BSP
• Operating pressure: 450 bar
• ISO-size: 6,3
• BG-size: 1
• type of coupling: male
• Flow rate: 12 l/min
• Size L: 115,5 mm
• Size L2: 67,5 mm
• Size HEX 4: 22 mm
• Size ØE: 33 mm
