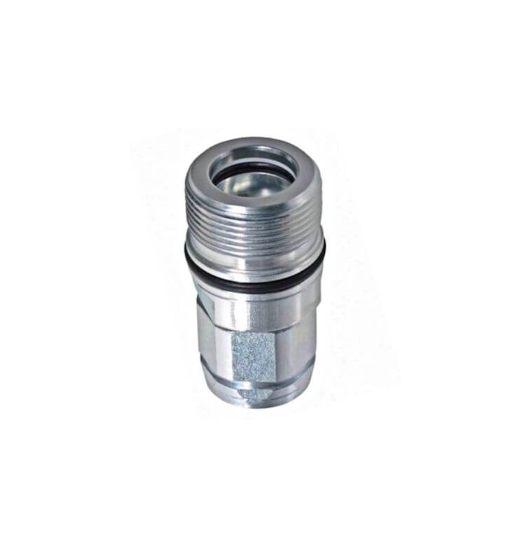

Screw Flat face quick release coupling 1" BSP female, BG-size 5 high pressure
€316.37
Out of stock
Screw Flat face quick release coupling 1" BSP female, BG-size 5 high pressure
- Material: steel / Zn – Fe (Cr III) / Zn - Ni
- Seals: NBR
- Work temperature: -25 ºC to +100 ºC
- ISO: 7241
Technical specifications:
- Size R1: 1" BSP
- Operating pressure: 350 bar
- ISO-size: 25
- BG-size: 5
- type of coupling: female
- Flow rate: 189 l/min
- Max. flow: 280 l/min
- Size L: 157 mm
- Size L2: 81 mm
- Size HEX 2: 40 mm
- Size HEX 3: 70 mm
- Size ØE: 77 mm
