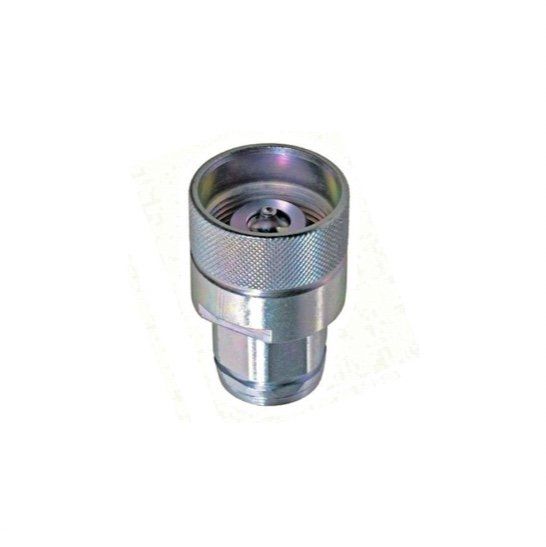

Screw Flat face quick release coupling 1" BSP male, BG-size 5 high pressure

Screw Flat face quick release coupling 1" BSP male, BG-size 5 high pressure

• Material: steel / Zn – Fe (Cr III) / Zn - Ni
• Seals: NBR
• Work temperature: -25 ºC to +100 ºC
• ISO: 7241

Technical specifications:

• Size R1: 1" BSP
• Operating pressure: 350 bar
• ISO-size: 25
• BG-size: 5
• type of coupling: male
• Flow rate: 189 l/min
• Max. flow: 280 l/min
• Size L: 157 mm
• Size L1: 106 mm
• Size HEX 1: 40 mm
