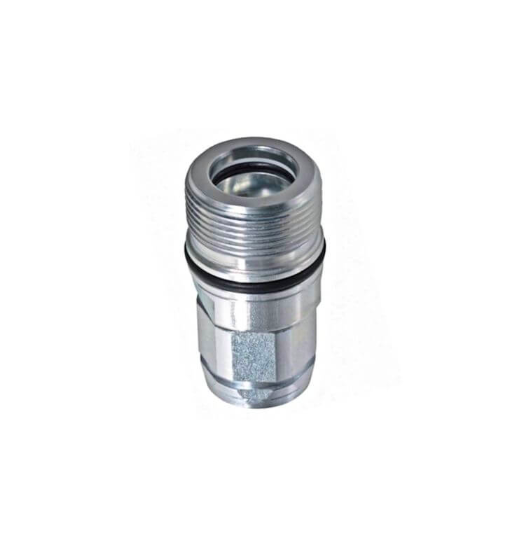

Screw Flat face quick release coupling 3/4" BSP female, BG-size 4 high pressure
€337.53
In stock
Screw Flat face quick release coupling 3/4" BSP female, BG-size 4 high pressure
- Material: steel / Zn – Fe (Cr III) / Zn - Ni
- Seals: NBR
- Work temperature: -25 ºC to +100 ºC
- ISO: 7241
Technical specifications:
- Size R1: 3/4" BSP
- Operating pressure: 400 bar
- ISO-size: 19
- BG-size: 4
- type of coupling: female
- Flow rate: 106 l/min
- Max. flow: 190 l/min
- Size L: 142 mm
- Size L2: 71 mm
- Size HEX 2: 30 mm
- Size HEX 3: 55 mm
- Size ØE: 60 mm
