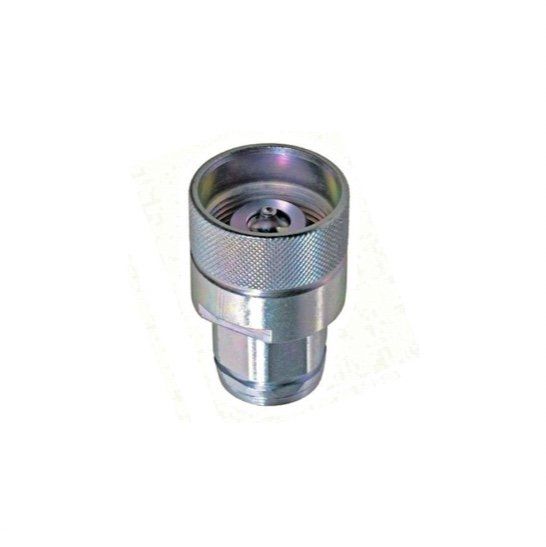

Screw Flat face quick release coupling 3/4" BSP male, BG-size 4 high pressure

Screw Flat face quick release coupling 3/4" BSP male, BG-size 4 high pressure

• Material: steel / Zn – Fe (Cr III) / Zn - Ni
• Seals: NBR
• Work temperature: -25 ºC to +100 ºC
• ISO: 7241

Technical specifications:

• Size R1: 3/4" BSP
• Operating pressure: 400 bar
• ISO-size: 19
• BG-size: 4
• type of coupling: male
• Flow rate: 106 l/min
• Max. flow: 190 l/min
• Size L: 142 mm
• Size L1: 98 mm
• Size HEX 1: 30 mm
