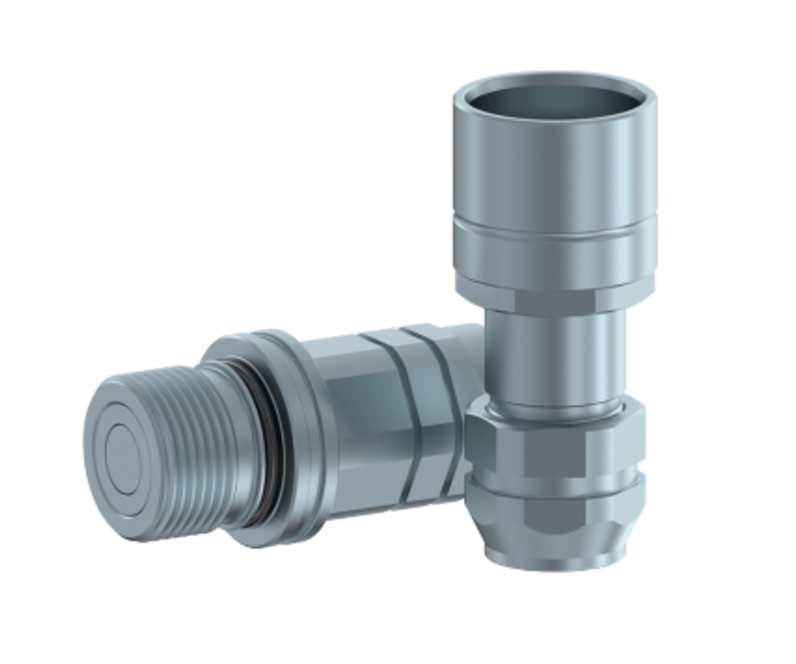

Screw Flat face quick release coupling 3/4" BSP male, BG-size 4A
€143.73
In stock
Screw Flat face quick release coupling 3/4" BSP male, BG-size 4A
- Reinforced Flat face quick release couplings that is able to resist more pressure
- Work temperature: -25 ºC to +100 ºC
- Operating pressure: 300 - 450 bar
- Maximum residual pressure: 300 bar
- Seals: NBR
- Material: steel
Technical specifications:
- Size R1: 3/4" BSP
- Operating pressure: 350 bar
- ISO-size: 16
- BG-size: 4A
- type of coupling: male
- Flow rate: 74 l/min
- Size L: 158,2 mm
- Size L2: 89,5 mm
- Size HEX 4: 36 mm
- Size ØE: 42 mm
