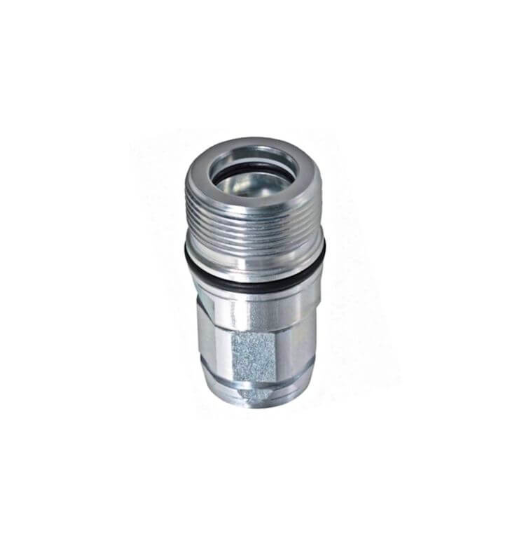

Screw Flat face quick release coupling 3/8" BSP female, BG-size 2 high pressure

Screw Flat face quick release coupling 3/8" BSP female, BG-size 2 high pressure

• Material: steel / Zn – Fe (Cr III) / Zn - Ni
• Seals: NBR
• Work temperature: -25 ºC to +100 ºC
• ISO: 7241

Technical specifications:

• Size R1: 3/8" BSP
• Operating pressure: 610 bar
• ISO-size: 10
• BG-size: 2
• type of coupling: female
• Flow rate: 23 l/min
• Max. flow: 46 l/min
• Size L: 112 mm
• Size L2: 57 mm
• Size HEX 2: 22 mm
• Size HEX 3: 45 mm
• Size ØE: 49 mm
