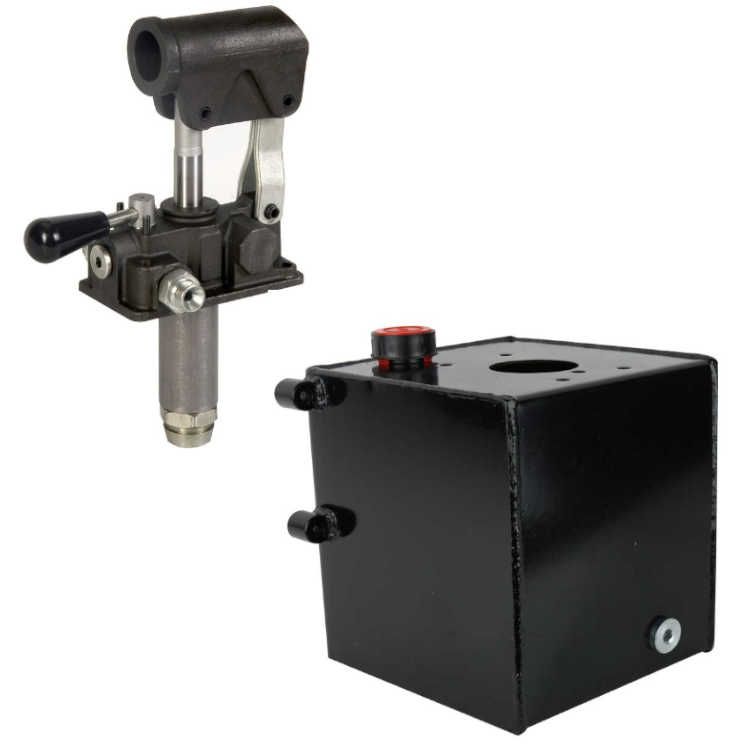

Set of stainless steel hand pump 12 cc double-acting with lowering valve and 5 liter tank

€2,395.00
In stock

Set of stainless steel hand pump 12 cc double-acting with lowering valve and 5 liter tank

Technical specifications:

  • Complete hand pump tank set that is fully coordinated
  • Parts packaging: 12 cc double-acting hand pump with lowering valve, lever, 5 liter tank
  • Material parts: Stainless steel AISI 316

Technical specifications hand pump:

  • Displacement per revolution: 12.5cc
  • Pump type: hand pump
  • Max. pressure: 320 bar
  • Connections: 3/8" BSP
  • Weight: 4.3kg

Technical specifications tank:

  • Dimension A: 175mm
  • Dimension B: 170mm
  • Dimension C: 195mm
  • Dimension D: 90mm
  • Dimension E: 215mm
  • Dimension H: 200mm
  • Weight: 4.5kg

Technical specifications lever:

  • Outside diameter: 27mm
  • Length: 600mm
  • Weight: 0.9kg
