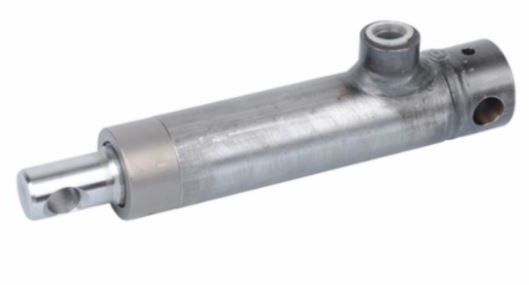

Single-acting cylinder 40x30x250 with eye

€89.61

In stock

✓ Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Single-acting cylinder 40x30x250 with eye

Technical properties:

Operating pressure: 180 bar
Maximum pressure: 210 bar
Temperature: -25°C to 80°c
Chrome-plated rod: steel UNI C45
Chrome plating thickness: 25 micron +/- 5
Tube: steel DIN 2393 - ISO H9
Maximum operating speed: 0.5 m/s

Technical specifications:

Dimension ØS (Rod): 30mm
Dimension K (Stroke): 250mm
Dimension ØAL (Bore): 40mm
Dimension ØD (Diameter): 50mm
Dimension Z: 350mm
Weight: 4.19 kg
Port (E): 3/8" BSP
Dimension L1: 42mm
Dimension ØP: 16.20mm
Dimension CM: 26mm
Dimension C: 42mm
Dimension ØJ: 27mm
Dimension CM1: 37mm
Dimension ØT: 50mm
