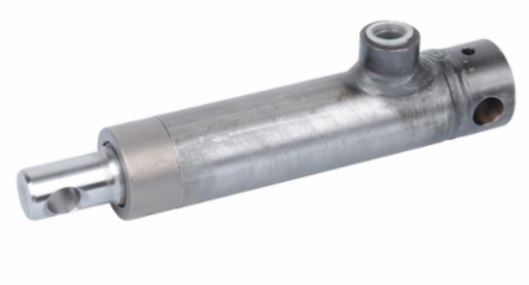

Single-acting cylinder 70x60x200 with eye

€187.91
In stock

 Worldwide shipping
✓ In stock, shipping within 1 working day
✓ Europe's largest range of hydraulic cylinders
✓ Select the right hydraulic cylinder in the configurator

Single-acting cylinder 70x60x200 with eye

Technical properties:

  • Operating pressure: 180 bar
  • Maximum pressure: 210 bar
  • Temperature: -25°C to 80°c
  • Chrome-plated rod: steel UNI C45
  • Chrome plating thickness: 25 micron +/- 5
  • Tube: steel DIN 2393 - ISO H9
  • Maximum operating speed: 0.5 m/s

Technical specifications:

  • Dimension ØS (Rod): 60mm
  • Dimension K (Stroke): 200mm
  • Dimension ØAL (Bore): 70mm
  • Dimension ØD (Diameter): 80mm
  • Dimension Z: 360mm
  • Weight: 12.26 kg
  • Port (E): 3/8" BSP
  • Dimension L1: 50mm
  • Dimension ØP: 25.25mm
  • Dimension CM: 36mm
  • Dimension C: 61mm
  • Dimension ØJ: 57mm
  • Dimension CM1: 57mm
  • Dimension ØT: 75mm
