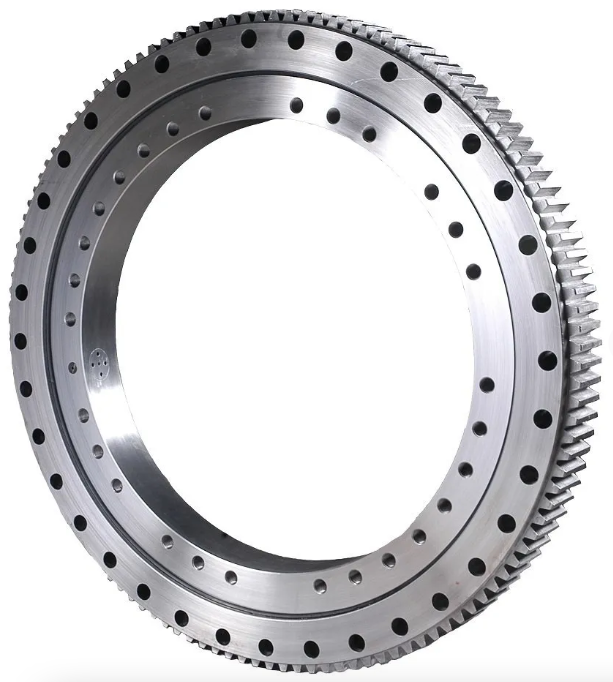

Slewing ring bearing external gearing with outer diameter 1050mm

Slewing ring bearing external gearing with outer diameter 1050mm

Technical specifications:

• Module: m 8
• Number of tooth: z 129
• Pitch diameter: `;Ø`; 1032
• Pressure angle: `;D20º`;
• Truncation: `;km -0.8
• Addendum change: `;xm 0
• Max. axial load: `;700 kN
• Max. tipping moment: `;150 kNm
• Working temperature range: `;-20℃ <`;>`; 70℃
• Weight: 70.55kg
• Holes: `;: M12 x20 - 360o/20 : Ø`;18 x20 - 360o/20
• tooth strength: Nm 28.2kN &`; Max: 39.7kN
• European manufacture

T vertical axis represents t overturning moment and t horizontal axis represents t axial load. T blue line shows t load limit of t slewing ring taking into account t raceway, wle t green line shows t load limit of t slewing ring screws. A slewing ring is only statically valid if t intersection of t axial force with t tilting moment lies below both lines.
