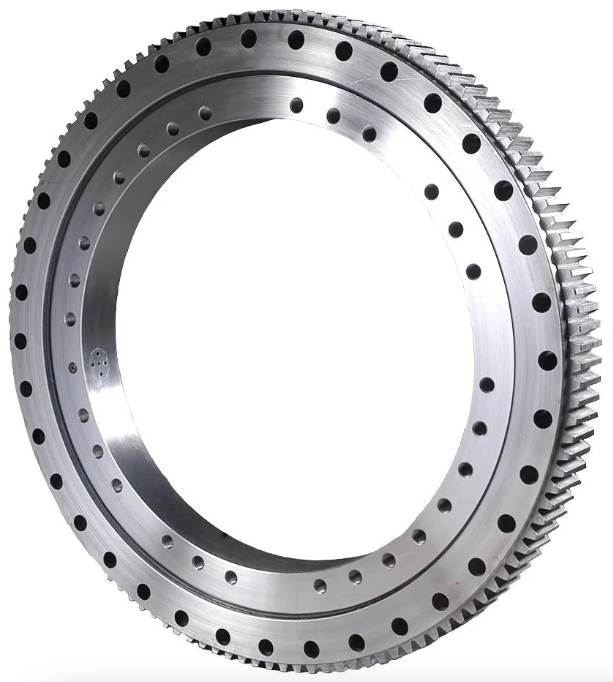

Slewing ring bearing external gearing with outer diameter 1200mm

€1,991.60

In stock

Skip to the beginning of the images gallery

Slewing ring bearing external gearing with outer diameter 1200mm

Technical specifications:

Module: m 8
Number of tooth: z 148
Pitch diameter: `;Ø`; 1184
Pressure angle: `;20º`;
Truncation: `;km -0.8
Addendum change: `;xm 0
Max. axial load: `;820 kN
Max. tipping moment: `;205 kNm
Working temperature range: `;-20℃ <`;>`; 70℃
Weight: 82.95kg
Holes: `;: M12 x22 - 360o/22 : Ø`;18 x20 - 360o/20
tooth strength: Nm 28.3kN &`; Max: 39.6kN
European manufacture

T vertical axis represents t overturning moment and t horizontal axis represents t axial load. T blue line shows t load limit of t slewing ring taking into account t raceway, wle t green line shows t load limit of t slewing ring screws. A slewing ring is only statically valid if t intersection of t axial force with t tilting moment lies below both lines.
