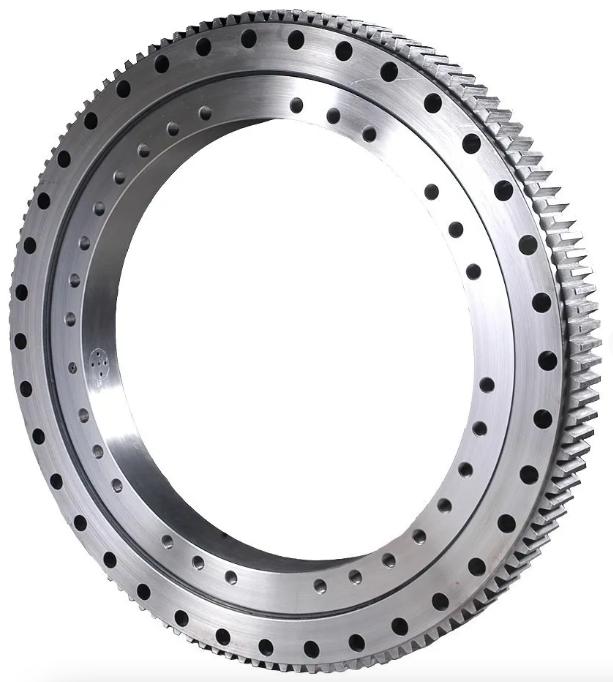

Slewing ring bearing external gearing with outer diameter 505mm

Slewing ring bearing external gearing with outer diameter 505mm

Technical specifications:

• Module: m 5
• Number of tooth: z 99
• Pitch diameter: `;Ø`; 495
• Pressure angle: `;D20º`;
• Truncation: `;km -0.5
• Addendum change: `;xm 0
• Max. axial load: `;295 kN
• Max. tipping moment: `;28 kNm
• Working temperature range: `;-20℃ <`;>`; 70℃
• Weight: 29.65kg
• Holes: `;: M12 x10 - 360º`;/10 &`; : Ø`;18x12 - 360º`;/12
• tooth strength: Nom 17.8kN &`; Max: 24.9kN
• European manufacture

T vertical axis represents t overturning moment and t horizontal axis represents t axial load. T blue line shows t load limit of t slewing ring taking into account t raceway, wle t green line shows t load limit of t slewing ring screws. A slewing ring is only statically valid if t intersection of t axial force with t tilting moment lies below both lines.
