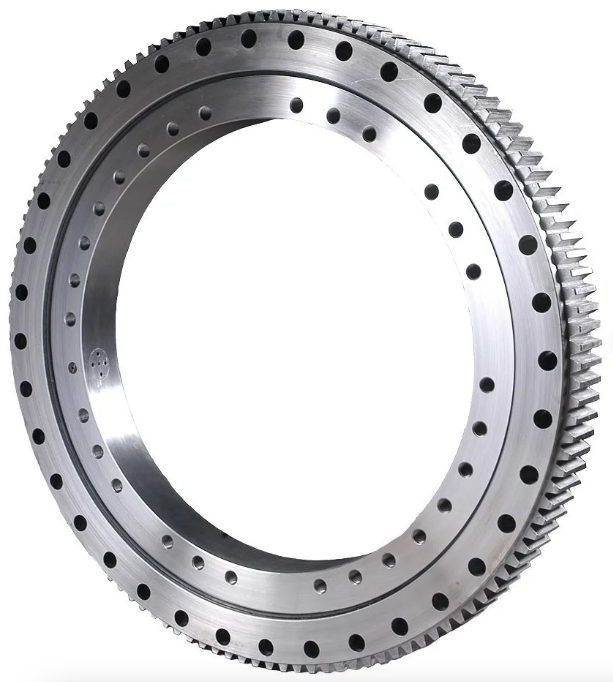

Slewing ring bearing external gearing with outer diameter 750mm

Slewing ring bearing external gearing with outer diameter 750mm

Technical specifications:

• Module: m 6
• Number of tooth: z 122
• Pitch diameter: `;Ø`; 732
• Pressure angle: `;D20º`;
• Truncation: `;km -0.6
• Addendum change: `;xm 0
• Max. axial load: `;470 kN
• Max. tipping moment: `;70 kNm
• Working temperature range: `;-20℃ <`;>`; 70℃
• Weight: 48.55 `;kg
• Holes: `;: M12 x16 - 360o/16 : Ø`;18 x16 - 360o/16
• tooth strength: Nm 21.2kN &`; Max: 29.7kN
• European manufacture

T vertical axis represents t overturning moment and t horizontal axis represents t axial load. T blue line shows t load limit of t slewing ring taking into account t raceway, wle t green line shows t load limit of t slewing ring screws. A slewing ring is only statically valid if t intersection of t axial force with t tilting moment lies below both lines.
