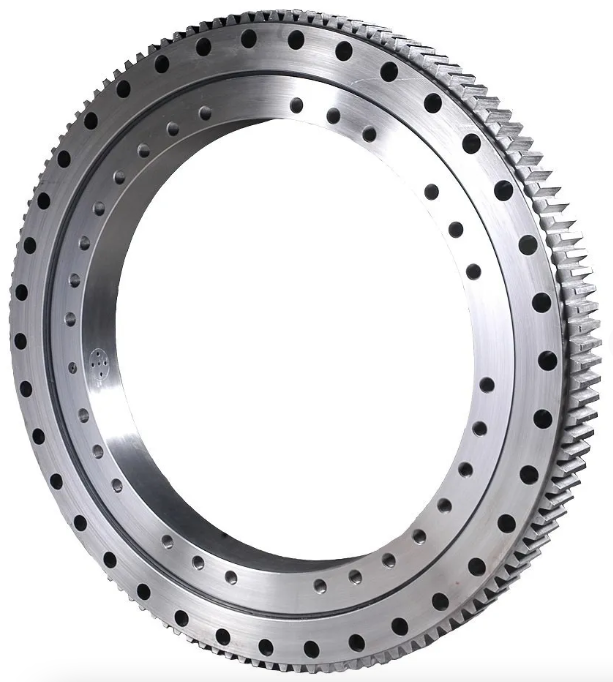

Slewing ring bearing external gearing with outer diameter 950mm

Slewing ring bearing external gearing with outer diameter 950mm

Technical specifications:

• Module: m 8
• Number of tooth: z 117
• Pitch diameter: `;Ø`; 936
• Pressure angle: `;D20º`;
• Truncation: `;km -0.8
• Addendum change: `;xm 0
• Weight: 65.49kg
• Holes: `;: M12 x18 - 360o/18 : Ø`;18 x18 - 360o/18
• tooth strength: Nm 28.3kN &`; Max: 39.6kN
• Max. axial load: 625 kN
• Max. tipping moment: 120 kNm
• Working temperature range: -20℃ <`;>`; 70℃
• European manufacture

T vertical axis represents t overturning moment and t horizontal axis represents t axial load. T blue line shows t load limit of t slewing ring taking into account t raceway, wle t green line shows t load limit of t slewing ring screws. A slewing ring is only statically valid if t intersection of t axial force with t tilting moment lies below both lines.
