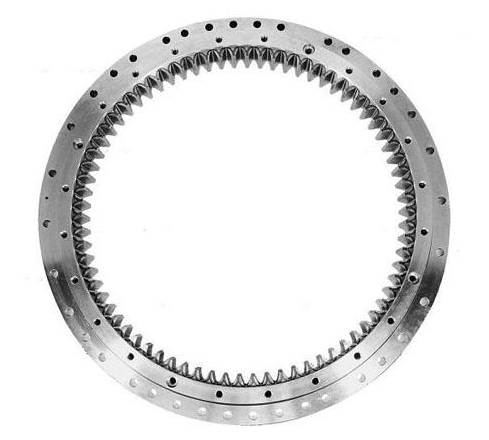

Slewing ring bearing internal gearing with outer diameter 1200mm

Slewing ring bearing internal gearing with outer diameter 1200mm

Technical specifications:

• Module: m 8
• Number of tooth: z 125
• Pitch diameter: `;Ø`; 1000
• Pressure angle: `;20º`;
• Truncation: `;km -0.8
• Addendum change: `;xm 0
• Weight: 82.65kg
• Max. axial load: `;820 kN
• Max. tipping moment: `;205 kNm
• Working temperature range: `;-20℃ <`;>`; 70℃
• Holes: `;y: Ø`;18 x16 - 360/16 : M12 x24 - 360/24
• tooth strength: Nom 28.5kN &`; Max: 39.9kN
• European manufacture

T vertical axis represents t overturning moment and t horizontal axis represents t axial load. T blue line shows t load limit of t slewing ring taking into account t raceway, wle t green line shows t load limit of t slewing ring screws. A slewing ring is only statically valid if t intersection of t axial force with t tilting moment lies below both lines.
