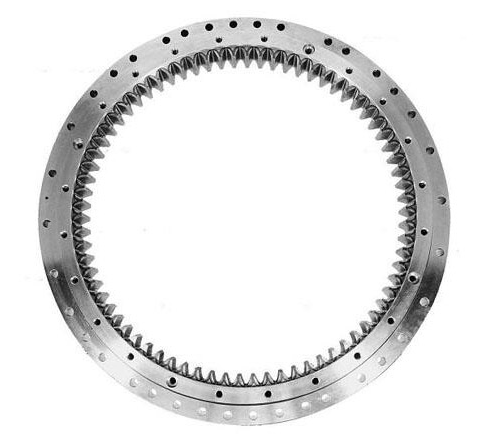

Slewing ring bearing internal gearing with outer diameter 850mm

Slewing ring bearing internal gearing with outer diameter 850mm

Technical specifications:

• Module: m 6
• Number of tooth: z 110
• Pitch diameter: `;Ø`; 660
• Pressure angle: `;20º`;
• Truncation: `;km -0.6
• Addendum change: `;xm 0
• Max. axial load: `;550 kN
• Max. tipping moment: `;92 kNm
• Working temperature range: `;-20℃ <`;>`; 70℃
• Weight: 52.10 kg
• Holes: `;y: Ø`;18 x12 - 360/12 : M12 x20 - 360/20
• tooth strength: Nom 21.4kN &`; Max: 30.0kN
• European manufacture

T vertical axis represents t overturning moment and t horizontal axis represents t axial load. T blue line shows t load limit of t slewing ring taking into account t raceway, wle t green line shows t load limit of t slewing ring screws. A slewing ring is only statically valid if t intersection of t axial force with t tilting moment lies below both lines.
