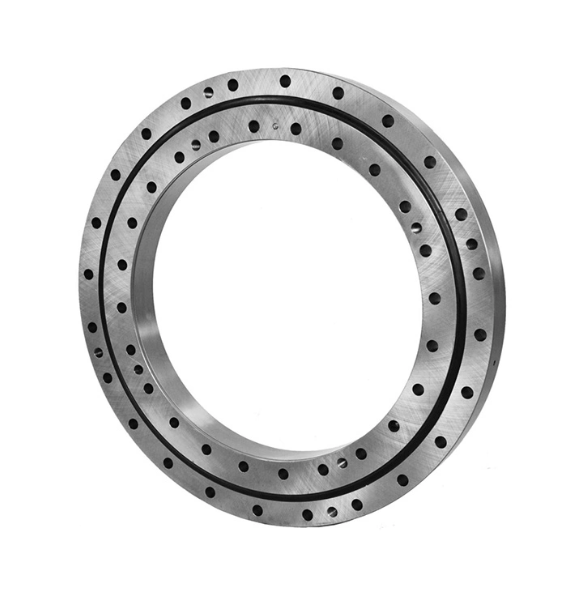

Slewing ring bearing without gearing with outer diameter 750mm

Slewing ring bearing without gearing with outer diameter 750mm

Technical specifications:

• Weight: 36.52kg
• Radial Clearance: 0.04 - 0.20
• Axial Clearance: 0.04 - 0.20
• Holes: `;y: Ø`;18 x12 - 360/12 : Ø`;18x16 - 360/16
• Max. axial load: `;470 kN
• Max. tipping moment: `;70 kNm
• Working temperature range: `;-20℃ <`;>`; 70℃
• European manufacture

T vertical axis represents t overturning moment and t horizontal axis represents t axial load. T blue line shows t load limit of t slewing ring taking into account t raceway, wle t green line shows t load limit of t slewing ring screws. A slewing ring is only statically valid if t intersection of t axial force with t tilting moment lies below both lines.
