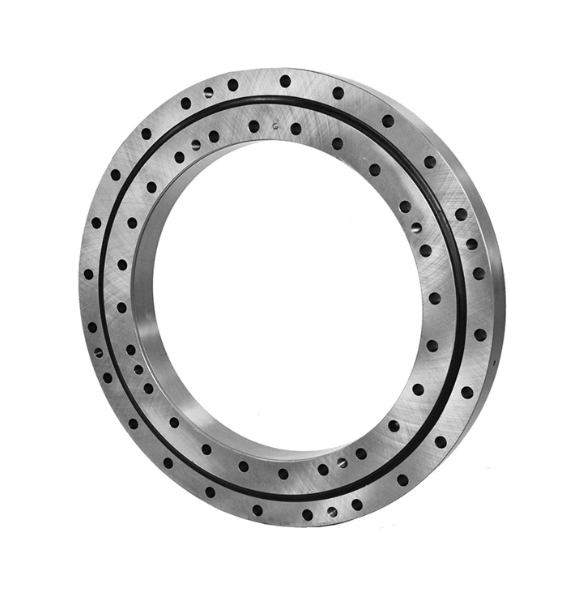

Slewing ring bearing without gearing with outer diameter 850mm

€1,310.30

In stock

Skip to the beginning of the images gallery

Slewing ring bearing without gearing with outer diameter 850mm

Technical specifications:

Weight: 42.33kg
Radial Clearance: 0. `;- 0.10
Axial Clearance: 0 `;- 0.20
Holes: `;y: Ø`;18 x12 - 360o/12 : Ø`;18 x16 - 360o/16
Max. axial load: `;550 kN
Max. tipping moment: `;95 kNm
Working temperature range: `;-20℃ <`;>`; 70℃
European manufacture

T vertical axis represents t overturning moment and t horizontal axis represents t axial load. T blue line shows t load limit of t slewing ring taking into account t raceway, wle t green line shows t load limit of t slewing ring screws. A slewing ring is only statically valid if t intersection of t axial force with t tilting moment lies below both lines.
