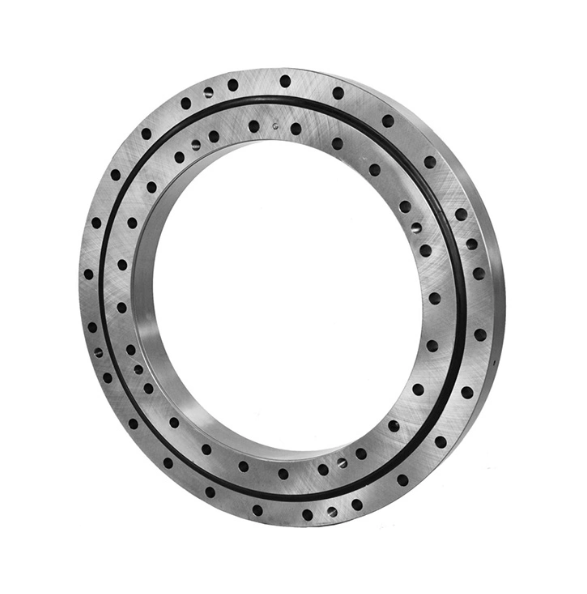

Slewing ring bearing without gearing with outer diameter 950mm

Slewing ring bearing without gearing with outer diameter 950mm

Technical specifications:

• Weight: 48.04kg
• Radial Clearance: 0. `;- 0.10
• Axial Clearance: 0 `;- 0.20
• Holes: `;y: Ø`;18 x14 - 360o/14 : Ø`;18 x18 - 360o/18
• Max. axial load: `;625 kN
• Max. tipping moment: `;120 kNm
• Working temperature range: `;-20℃ <`;>`; 70℃
• European manufacture

T vertical axis represents t overturning moment and t horizontal axis represents t axial load. T blue line shows t load limit of t slewing ring taking into account t raceway, wle t green line shows t load limit of t slewing ring screws. A slewing ring is only statically valid if t intersection of t axial force with t tilting moment lies below both lines.
