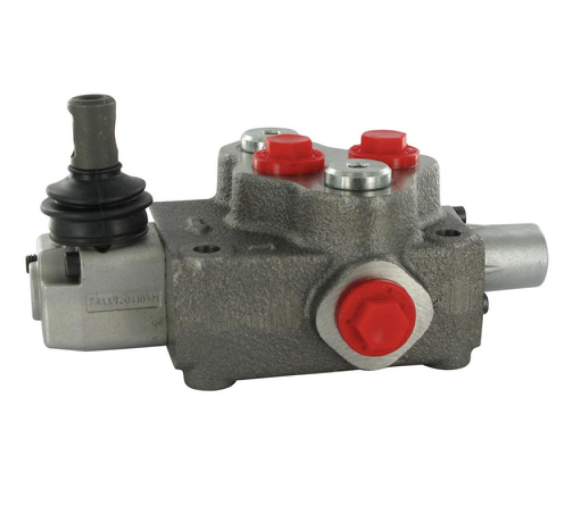

Control valve Walvoil 1 section 18L-AET manual 45L/min

Control valve Walvoil 1 section 18L-AET manual 45L/min

Manual control valve of the quality brand Walvoil. Suitable for hydraulic applications and systems with medium amounts of oil. Main pressure control valve and non-return valve in P-channel and suitable for open system. Product is excluding operating lever.

Technical specifications:

• Ambient temperature °C: -20 / +60
• Capacity max: 45 l/min
• Connection: P1-P = 3/8" T = 3/8" A,B = 3/8"
• Seal material: nitrile rubber (NBR)
• Max leakage (cm³/min): 3
• Average temperature °C :   -20 / +80
• Output module: AET (open system)
• PL & ST: 1-8
• Compression spring (bar): 50 - 220
• Working pressure max (bar): 315
• Type: 1 working section (monoblock)
