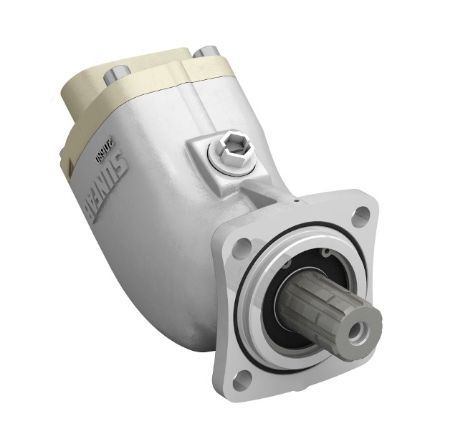

Sunfab plunger motor 10cc with 25 l/min spline shaft 8x32x34.9

Sunfab plunger motor 10cc with 25 l/min spline shaft 8x32x34.9

Technical specifications:

• This series of axial piston motors with aluminum housing is suitable for use in mobile hydraulics
• Compact design with few moving parts
• Suitable for applications with high angular accelerations due to its high torsional strength
• High starting torque and high actuational reliability
• High efficiencyëntion

Technical specifications:

• Item number: SAM-010W-N-DL4-L35-S3G-100
• Stroke volume: 9.6 cm³
• Max. operating pressure: 350 bar
• Min. speed: 300 rpm
• Max. speed: 2400 rpm
• shaft: spline shaft 8x32x34.9
• Assets: 11 kW
• Max. flow: 25 l/min
