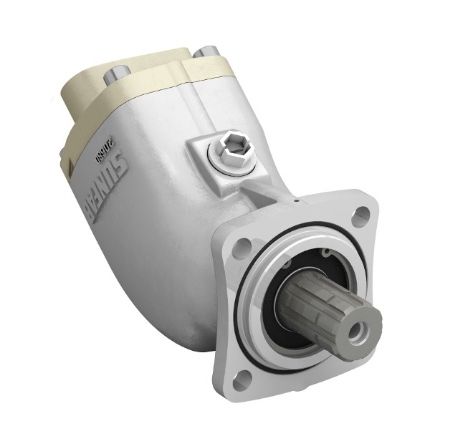

Sunfab plunger motor 40cc with 91 l/min spline shaft 8x32x34.9
€1,216.02
In stock
Sunfab plunger motor 40cc with 91 l/min spline shaft 8x32x34.9
Technical specifications:
- This series of axial piston motors with aluminum housing is suitable for use in mobile hydraulics
- Compact design with few moving parts
- Suitable for applications with high angular accelerations due to its high torsional strength
- High starting torque and high actuational reliability
- High efficiencyëntion
Technical specifications:
- Item number: SAM-040W-N-DL4-L35-S3G-100
- Stroke volume: 41.2 cm³
- Max. operating pressure: 350 bar
- Min. speed: 300 rpm
- Max. speed: 2000 rpm
- shaft: spline shaft 8x32x34.9
- Assets: 46 kW
- Max. flow: 91 l/min
