Tractor splitter set 10 tons

This complete set consists of all the necessary hydraulic parts to build a safe and well-functioning splitter. The parts in the set are matched to each other so that you can be sure that everything functions optimally after installation.

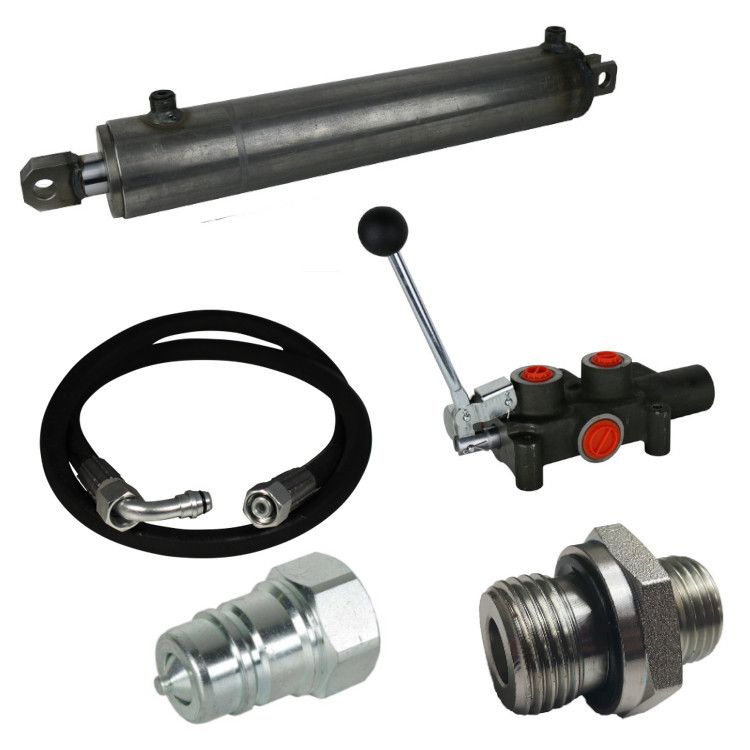

The set comes with the following parts:

Double acting cylinder 80x40x400mm with mounting
Log splitter control valve with double speed function and auto-return
2 x 1/2” hydraulic hose 1000 mm with 15L angled coupling on one side and a 15L straight coupling on the other side
2 x 1/2” hydraulic hose 1500 mm with 15L angled couplings on one side and a 15L straight coupling on the other side
2 screw couplings 3/8” - 15L (with o-ring)
4 screw couplings 1/2” – 15L (with o-ring)
2 screw couplings 3/4” – 15 L (with o-ring)
2 standard quick couplings 1/2 “ BSP male (DN 13, standard agricultural size)

Below are the specifications of the supplied cylinder and log splitter control valve. For the small parts you can look in the separate product advertisements.

Double-acting cylinder 80x40x400 with mounting:

Working pressure: 180 bar
Maximum pressure: 210 bar
Temperature: -25°C to +80°C
Chrome bar: steel UNI C45
Thickness of chrome plating: chrome 25 micron +/- 5
Pipe: steel DIN 2393 - ISO H9

Technical specifications:

Dimension S (Rod): 40 mm
Dimension K (Stroke): 400 mm
Dimension AL (Bore): 80 mm
Dimension D (Diameter): 92 mm
Weight: 17.50 kg
Connection (E): 3/8" BSP
Dimension Z: 610 mm
Dimension L: 60 mm
Dimension L1: 42 mm
Size CM: 70 mm
Dimension P: 30.25 mm
Dimension H: 50 mm
Dimension V: 55 mm
Dimension T: 90 mm

P81RS Log splitter slide, auto-return, 2 speed function

Type: Manual log splitter control valve with auto-return, and 2 speed function. Thanks to this function, the cylinder automatically returns to the rest position at a speed that is twice as high as usual.
Number of functions: 1
Packaging: Manual Log Splitter Control Valve and Operating Lever

Technical specifications:

Overpressure setting range: 63 bar - 250 bar
Inlet pressure: 315 bar
Flow capacity: 80 l/min
Return pressure: 25 bar
Connection A (Port A): 1/2" BSP
Connection B (Port B): 1/2" BSP
Connection T (Port T): 3/4" BSP
Connection P (Port P): 3/4" BSP
