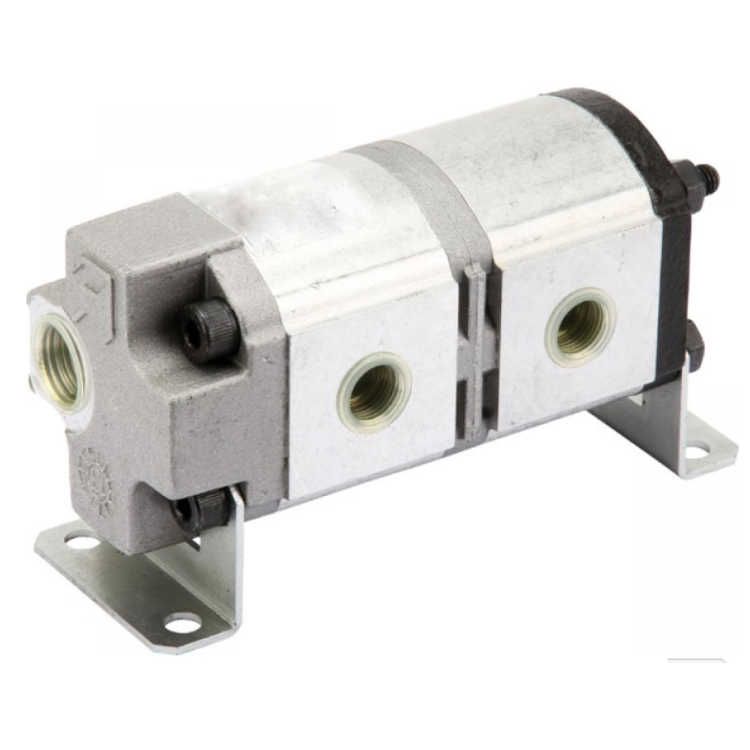

Flow divider, 2 way, 11-41 l/min

Flow divider, 2 way, 11-41 l/min

Technical Properties:

• Application: for An equivalent distribution of An oil current. (For example for two synchronous ongoing cylinders)
• Version: 2 way

Technical specifications:

• Item number: 9D0236
• Group: 1
• Min. volume flow: 11 l/min
• Max. volume flow: 41 l/min
• Max. pressure: 200 bar
• Section contents: 9,8 cc
• Number of sections: 2
• Speed: 6500 RPM
• Size R1: 1/2" BSP
• Size R2: 3/8" BSP
• Size A: 76 mm
• Size L: 292 mm
• Exact measurements: see attachment
