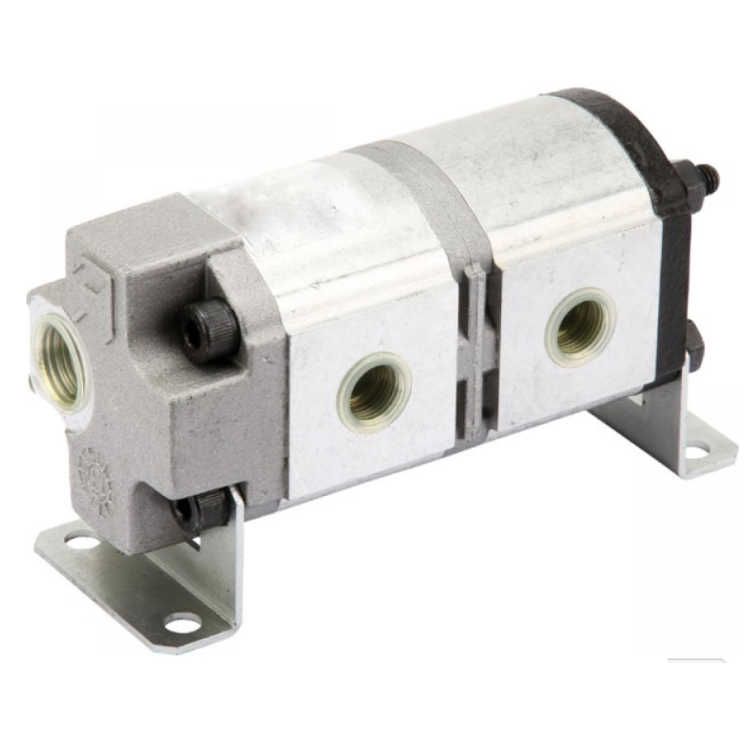

Flow divider | 2-fold | 4.5-23 l/min

Flow divider | 2-fold | 4.5-23 l/min

Technical specifications:

• Application: for an equal distribution of an oil flow. (For example for two synchronously running cylinders)
• Version: 2-fold

Technical specifications:

• Group: 1
• Min. volume flow: 4.5 l/min
• Max. volume flow: 23 l/min
• Max. pressure: 220 bar
• Section content: 4.3 cc
• Number of sections: 2
• Speed: 6500 RPM
• Dimension R1: 1/2" BSP
• Dimension R2: 3/8" BSP
• Dimension A: 54 mm
• Dimensions L: 248 mm
• Exact dimensions: see attachment
