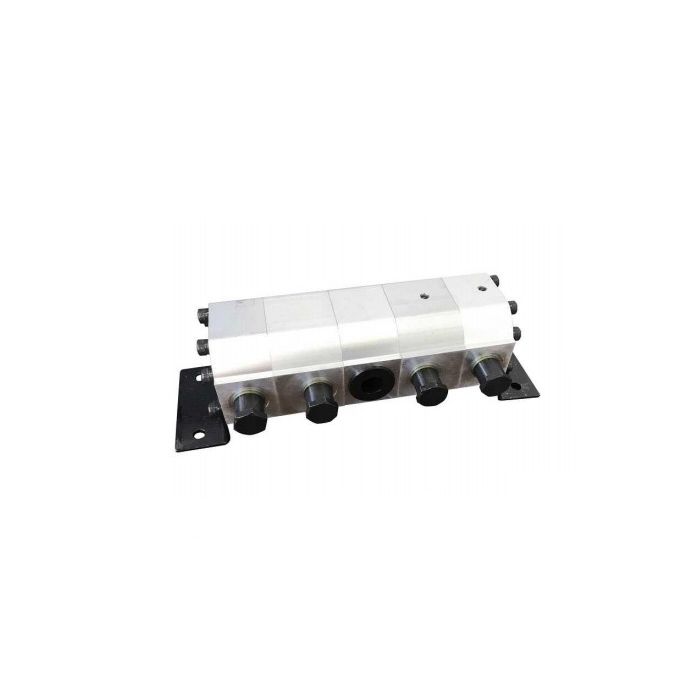

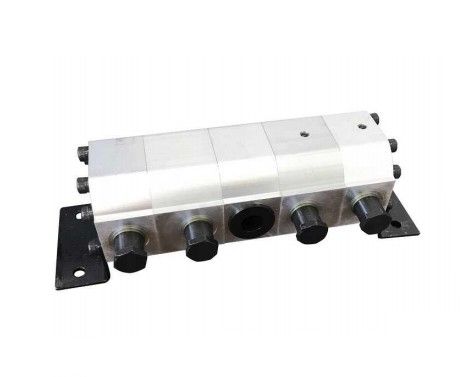

Flow divider, 4-way, 17-34,1 l/min with pressure safety

flow divider, 4-way, 17-34,1 l/min with pressure safety

Technical Properties:

• with anti shock valve (pressure safety)
• Application: for An equivalent distribution of An oil current. With a correct chosen flow divider an synchronization of 98% is possible.
• Version: 2-way
• Brand: Hydraulic247

Technical specifications:

• Group: 1
• Min. volume flow per Section: 17 l/min
• Max. volume flow per Section: 34,1 l/min
• Max. pressure: 240 bar
• pressure valve: 160 - 250 bar
• Number of sections: 4
• Section contents: 8,4 cm3
• Connection incoming port: 1/2" BSP
• Connection outgoing port: 3/8" BSP
• For Exact measurements: See attachment
