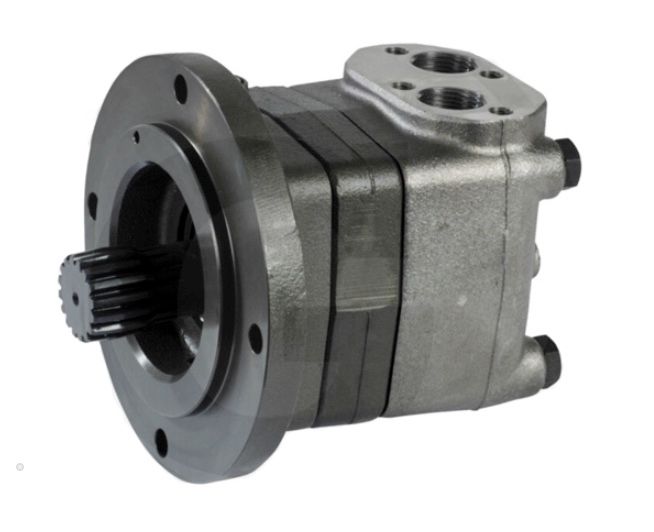

VMS400 400cc hydraulic motor 16-DP/20 as

VMS400 400cc hydraulic motor 16-DP/20 axle

Technical specifications:

• Model: VMS400
• Displacement: 419 m³
• Max. speed: 500 rpm
• Max. torque: 1180 Nm
• Max. power: 47 kW
• Pressure difference: 200 bar
• Max. flow: 200 l/min
• Dimensions L: 180 mm
• Connection T: 1/4" BSP
• Inlet pressure: 240 bar
• Connection AB: 1" BSP
• Dimension L1: 30.5 mm
• Dimension L2: 168.5 mm
• Version: short motor
• Danfoss reference number: 151B3126
