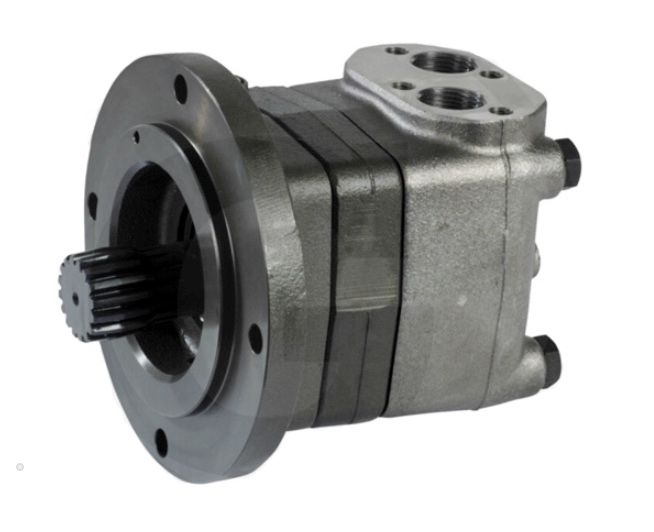

VMS630 630cc hydraulic motor 16-DP/20 as

VMS630 630cc hydraulic motor 16-DP/20 axle

Technical specifications:

• Model: VMS630
• Displacement: 666 m³
• Max. speed: 320 rpm
• Max. torque: 1660 Nm
• Max. power: 40 kW
• Pressure difference: 180 bar
• Max. flow: 200 l/min
• Dimension L: 200 mm
• Connection T: 1/4" BSP
• Inlet pressure: 210 bar
• Connection AB: 1" BSP
• Dimension L1: 50.5 mm
• Dimension L2: 188.5 mm
• Version: short motor
• Danfoss reference number: 151B3128
