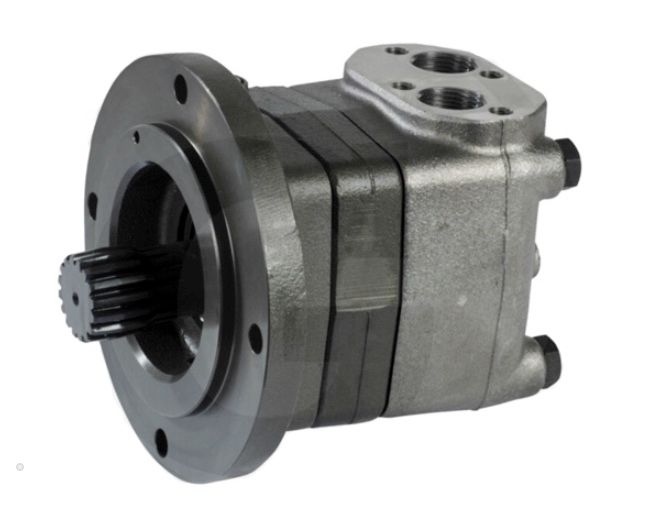

VMS800 800cc hydraulic motor 16-DP/20 as

VMS800 800cc hydraulic motor 16-DP/20 axle

Technical specifications:

• Model: VMS800
• Displacement: 801 m³
• Max. speed: 250 rpm
• Max. torque: 1880 Nm
• Max. power: 33 kW
• Pressure difference: 160 bar
• Max. flow: 200 l/min
• Dimensions L: 211 mm
• Connection T: 1/4" BSP
• Inlet pressure: 210 bar
• Connection AB: 1" BSP
• Dimension L1: 61.5 mm
• Dimension L2: 199.5 mm
• Version: short motor
• Danfoss reference number: 151B3128
