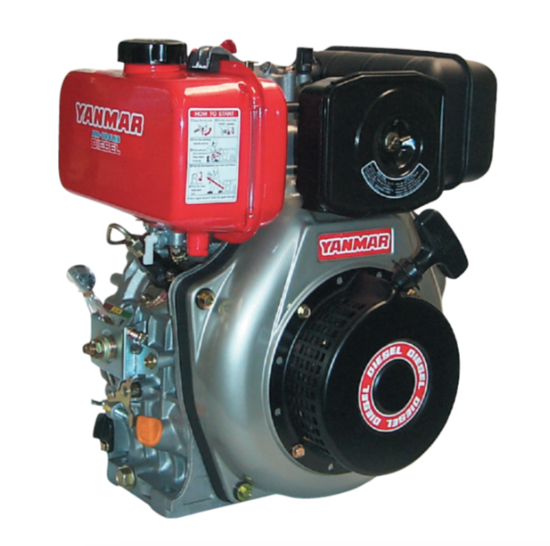

Yanmar L100 diesel engine (electric start)

Yanmar L100 diesel engine (electric start

Suitable in the following commercial applications:

• Garden and park machines
• Industrial applications
• Navy
• Road and hydraulic engineering
• Farming tools
• Cleaning tools
• Construction machinery

Specifications:

• Brand: Yanmar
• Model: L100
• Type: 4-stroke, 1 cylinder, vertical air-cooled Direct injection
• Bore & Stroke: 86x75
• Cylinder capacity: 435cc
• Compression ratio: 19:1
• Rated power: 9hp/6.6kW @ 3600 rpm
• Max power: 10hp/8.8kW @ 3600 rpm
• Idle speed: <1300
• Oil lubrication system: Pressure splash lubrication
• Direction of rotation: Left (counterclockwise)
• Fuel type: 0#,-10#,-20# diesel
• Fuel capacity: 2.7 liters
• Fuel consumption: 202gr/hp/h 3000rpm and 206g/hp/3600rpm
• Oil Type: SEA 10w40 or 15w40
• Oil capacity: 1.6 liters
• Starting system: manual start and electric start
• Starter motor: 12V 0.8kw Hitachi starter motor
• Charging coil capacity: 12v 3A
• Dimensions: (LxWxH) 412x471x494
• Shaft size : Ø 25.4 mm, 3/8-24INF-2B, internal thread (with keyway).
• Weight : 49 kg
